SKU:
RXSOL-61-2863-001 Packing Sizes:
Product Application:
UV-visible spectrophotometer, an analytical instrument commonly used in physico-chemical laboratories to make quantitative analysis of specimen materials in the ultraviolet, visible spectral range finds much scope for its service in such fields as medicine, clinical examination, biochemistry, petro-chemical industry, Bio-technology, Environmental protection and quality control. The technique has enjoyed a molecular biology and the need to quantify DNA and proteins. Here, the simplicity of use, the non-destructive nature of the sampling and the cost. Effectiveness of the measurement has proved very beneficial in the medium laboratory.
analysis of specimen materials in the ultraviolet, visible spectral range finds much scope for its service in such fields as
medicine, clinical examination, biochemistry, petro-chemical industry, Bio-technology, Environmental protection and quality
control. The technique has enjoyed a molecular biology and the need to quantify DNA and proteins. Here, the simplicity of use,
the non-destructive nature of the sampling and the cost. Effectiveness of the measurement has proved very beneficial in the
medium laboratory.UV-visible spectrophotometer, an analytical instrument commonly used in physico-chemical laboratories to make quantitative
analysis of specimen materials in the ultraviolet, visible spectral range finds much scope for its service in such fields as
medicine, clinical examination, biochemistry, petro-chemical industry, Bio-technology, Environmental protection and quality
control. The technique has enjoyed a molecular biology and the need to quantify DNA and proteins. Here, the simplicity of use,
the non-destructive nature of the sampling and the cost. Effectiveness of the measurement has proved very beneficial in the
medium laboratory.
the non-destructive nature of the sampling and the cost. Effectiveness of the measurement has proved very beneficial in the
medium laboratory.
Product Dose:

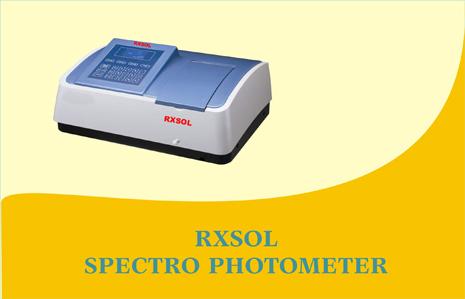

RXSOL: Spectro Photometers
SALIENT FEATURES :
SALIENT FEATURES :
General purpose
Digital display
Microprocessor based
400 samples storage capacity
Wavelength range 340 to 960 nm
Compact and easy to operate instrument
| Wavelength Range | 340 to 960 nm |
| Wavelength Accuracy | + 1nm |
| Spectral Slit width | |
| % Transmission | 0.0 - 100% T |
| Absorbance | 0 - 1.999 A |
| Concentration | 0 - 1999 |
| K Factor | 0.1 to 199.9 |
| Resolution | 0.1% T, 0.001 Abs |
| Stray Radiant Energy | 2% or lesser at 340 nm and 400 nm |
| Photometric Accuracy | 2% T or lesser |
| Monochromator | 600 lines/mm diffraction gratings |
| Photo Detectore | Silicon Photodiode |
| Display |
20 x 4 line alphanumeric LCD display for %T, Abs, Conc. And K Factor |
| Key Board | 6 keys soft touch membrane type |
| Data Storage | Upto 400 samples |
| Light Source | 6V, 10W. Tungsten Halogen lamp |
| Sample Holder | 10 mm cuvettes / glass tubes |
| Serial Interface | RS - 232 Interface |
| Power | 230 V + 10%, 50 Hz. |
| Standard Accessories | Matched Test Tubes - A set of 2 Dust Cover - 1 No. Instruction Manual - ! No. |
Product Note:
Product Technical Specification:
RXSOL: UV - Visible, Microprocessor based Spectro Photometer
FEATURES:
Wide Range : Covers 195 to 1000nm
4 Position Cuvette Holder
RS - 232C Computer Interface
High Wavelength Precision
Compact & Good looking shape
High Wavelength Precision
Compact & Good looking shape
Highly accurate & stable / economical
| SPECTRAL | 195 to 1000 nm |
| Wavelength Range | 2 nm |
| Spectral Bandwidth | + 0.5 nm |
| Accuracy | + 0.3 nm |
| Repeatability | 0.1 nm |
| Resolution | |
| Photometric | %t: 0 to 100% Abs. : 0 to 1.999 K Factory: 0 to 1999 |
| Photometric Range | + 0.005 Abs at 1.0 Abs |
| Accuracy | + 0.010 Abs at 1.5 Abs |
| Stray Light | Less than 0.1% at 320 nm |
| Readability | + 1 conut |
| data Readout | Single Line LCD Display |
| Keyboard | 4 Keys, soft touch membrane type |
| Printer Interface | Printer Interface for any centronics DotMatrix Printer |
| Serial Interface | RS 232 interface |
| Light Source | (a) Tungsten - Halogen Lamp (b) Deuterium Lamp (D2) |
| detector | Wide range silicon Photodiode |
| Optics | Complete mirror optics with resolution 1200 grooves/mm grating |
| Sample Holder | 4 Position adjustable sample holder |
| Power | 230 V + 10% 50 hz AC |
|
Dimensions
Weight
Dimensions
Weight
Dimensions
Weight
Dimensions
Weight
|
Dimensions
Weight
420 x 350 x 240 mm(lxbxh) Approx.
10 Kg. (Approx.)
|
Wide Range : Covers 195 to 1000nm
4 Position Cuvette Holder
RS - 232C Computer Interface
High Wavelength Precision
Compact & Good looking shape
High Wavelength Precision
Compact & Good looking shape
Highly accurate & stable / economical
Wide Range : Covers 195 to 1000nm
4 Position Cuvette Holder
RS - 232C Computer Interface
High Wavelength Precision
Compact & Good looking shape
High Wavelength Precision
Compact & Good looking shape
Highly accurate & stable / economical
