Corrosion Inhibitor for Open Cooling Circulating System available in 25 Kg packing.

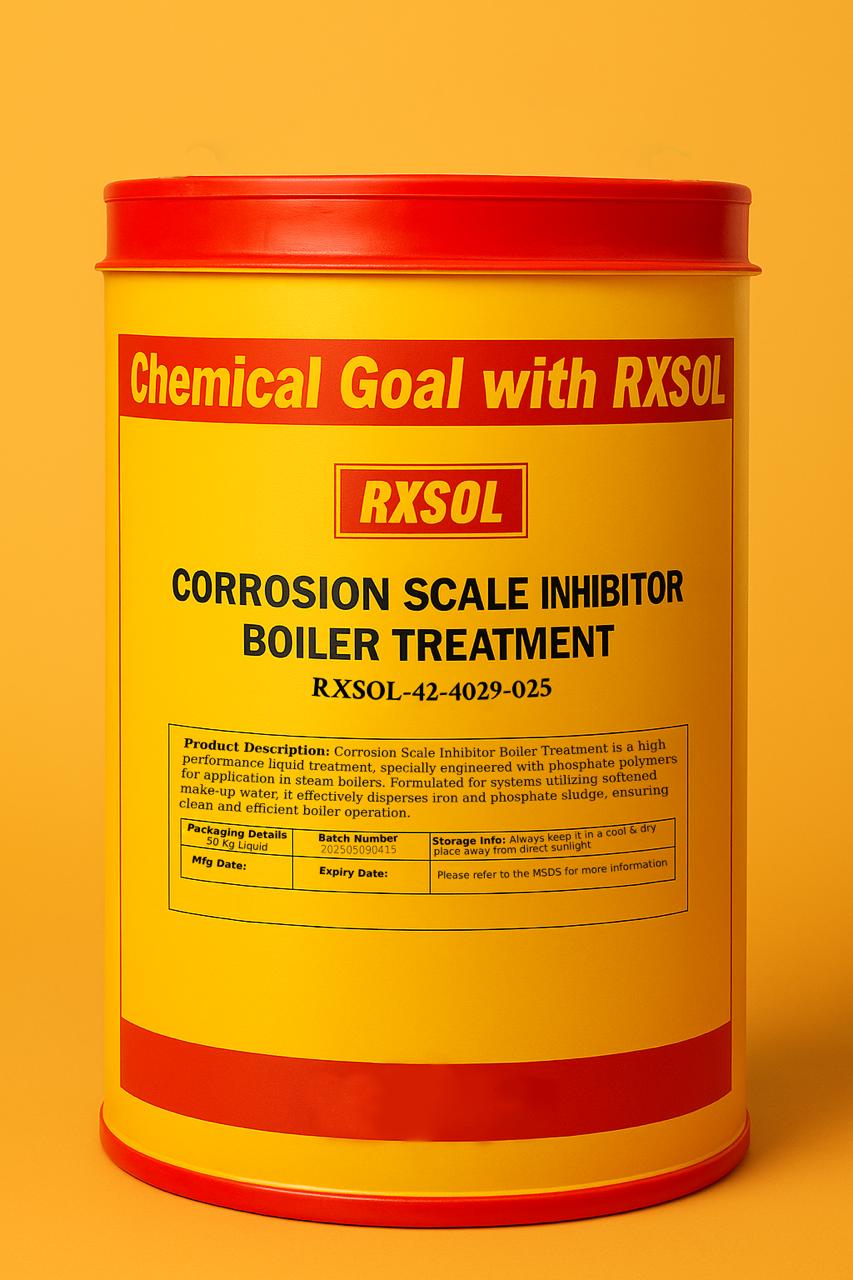

Corrosion Scale Inhibitor Boiler Treatment is a high-performance liquid treatment, specially engineered with phosphate polymers for application in steam boilers.
Formulated for systems utilizing softened make-up water, AquaShield B64 effectively disperses iron and phosphate sludge, ensuring clean and efficient boiler operation.
The advanced polymer blend promotes the transport of calcium, magnesium, iron, phosphate, and silica through the boiler system, preventing the formation of stubborn deposits.
By minimizing scale and sludge buildup, AquaShield B64 helps extend steam production cycles, enhances heat transfer efficiency, and reduces the risk of tube overheating and associated maintenance downtime
Corrosion Inhibitor OPEN Cooling System scientifically formulated to keep clean open recirculating systems and also prevent from scale formation . Chemically Corrosion Inhibitor OPEN Cooling System will disperse scale and corrosive products, silt etc and can be used as an anti-foulant along with other treatments.
Excellent scale inhibition for a variety of applications including cooling circuits, boilers and RO units.
It is widely used in Boilers, cooling water and membranes
-
Dosage (ppm) = (Feedwater Hardness × F) + (Feedwater Iron × 20)
-
Select Factor F based on boiler pressure:
Use F = 23 for boilers up to 30 bar.
Most industrial and utility boilers globally operate between 10–40 bar (low to medium pressure steam production).
F = 23 works well for boilers using softened feedwater, which is very common internationally.
Even for pressures slightly above 35 bar (up to 45 bar), using F = 24 still keeps treatment safe and effective without under- or overdosing.
Manage Phosphate reserve after dosing the product as per below:
| Boiler Pressure | Phosphate Reserve |
|---|---|
| 0–20 bar | 30–70 ppm |
| 21–40 bar | 20–50 ppm |
| 41–60 bar | 20–40 ppm |
| 61–70 bar | 15–30 ppm |
Maximum pressure limit for this product is 60 bar.
- Phosphate-Polymer Blend: Combines the proven benefits of phosphate treatment with advanced polymer technology for superior boiler protection.
- Effective Sludge Control: Disperses iron and phosphate sludges, preventing buildup and blockages.
- Enhanced Scale Prevention: Efficiently transports calcium, magnesium, iron, phosphate, and silica through the system to avoid deposit formation.
- Optimized for Softened Water: Specially designed for steam boilers using softened make-up water.
- Liquid Formulation: Easy to handle, dose, and integrate into existing treatment programs.
- Compatible with Boiler Metallurgy: Safe for use across a wide range of boiler materials without risk of corrosion.
- Increases Steam Production Efficiency: Minimizes scaling and deposits, ensuring uninterrupted heat transfer and maximizing operational performance.
- Extends Boiler Life: Reduces the risk of tube overheating and mechanical failure, prolonging equipment life.
- Lowers Maintenance Costs: Prevents the formation of adherent deposits, reducing the frequency of cleaning and unscheduled shutdowns.
- Improves Operational Safety: Maintains boiler cleanliness, helping to avoid dangerous overheating and pressure issues.
- Reduces Chemical Consumption: Highly efficient formulation requires lower dosages compared to conventional treatments.
- Simplifies System Management: Liquid formulation ensures easy and accurate dosing with minimal handling risks.
| Appearance | Paly Yellow, Clear liquid |
| Density | 1.01-1.1 |
| Boiling Poitnt | 100 degree celcius |
Corrosion and Scale Inhibitor (Bi-functional) Cooling water System, Phosphate based product.
